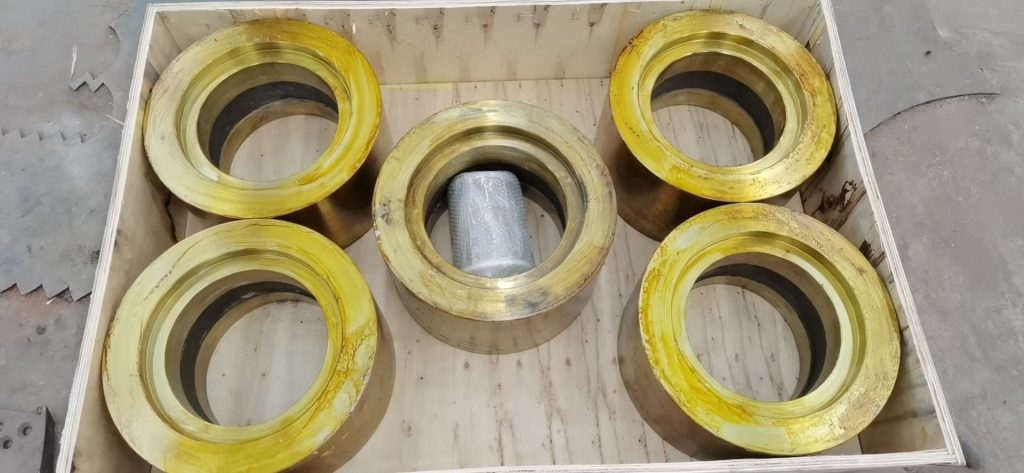

Grinding Roller

Raymond grinding roller materials usually are made of alloy steel, alloy carbon steel, ZG65Mn manganese alloy steel, ZGMn13, and X120Mn12 high manganese alloy steel.

Among them, alloy steel and high-quality alloy carbon steel have better wear resistance and are suitable for softer or low-hardness materials.

Functions of Grinding Roller

Grinding rollers are the common wear parts of Roller mills, they work both for twin roller machines and Raymond mill machines. During the work the grinding rollers friction the material to another roller or the grinding rings, and at the same time they also rub against each other, so the rollers need timely replacement when it has severely worn out, it is important to have the right size and output materials.

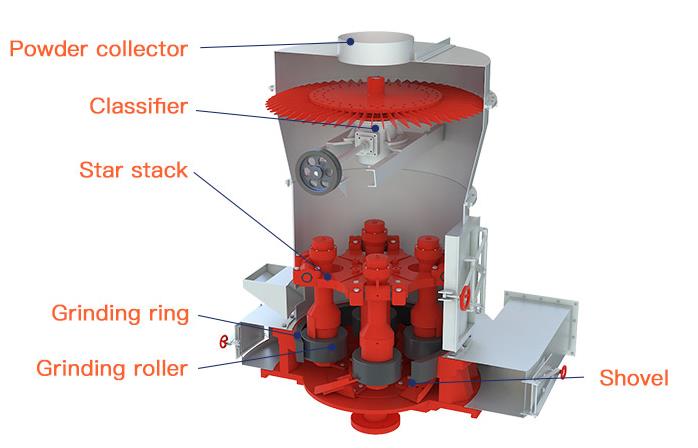

Main parts of Raymond mill



Grinding Roller, Raymond roller mill wear parts, spare parts

Roller mill in another name of Raymond Mills are commonly air-swept vertical Roller Mills with an integral classification system that simultaneously dries, pulverizes and classifies clays, minerals and manufactured materials that are 5 or less on the Mohs scale. From a feed ranging in size from approximately 10-40mm (½” to 1½”), the roller mill can produce particles ranging from coarse, granular products of approximately 10%R2000 micron (90% minus 10 mesh) to as fine as 0.002%R44 micron (99.998% minus 325 mesh).

With the experiences we have collected, Capable of supplying the wear parts for following roller mills models:
MTW110 ™ | MTW138™ | MTW175™ | MTW215™|SCM6015™ | SCM8021™ | SCM10027™ |XZM221™ | XZM224™ | XZM236™ | XZM244™ |HGM80™ | HGM90™ | HGM100™ | HGM100A™ | HGM125™ | HGM1680| TGM100 ™ | TGM130™ | TGM160™|MTM100 ™ | MTM130™ | MTM160™ |YGM75™ | YGM85™ | YGM95™ | YGM130™ | YGM160™
