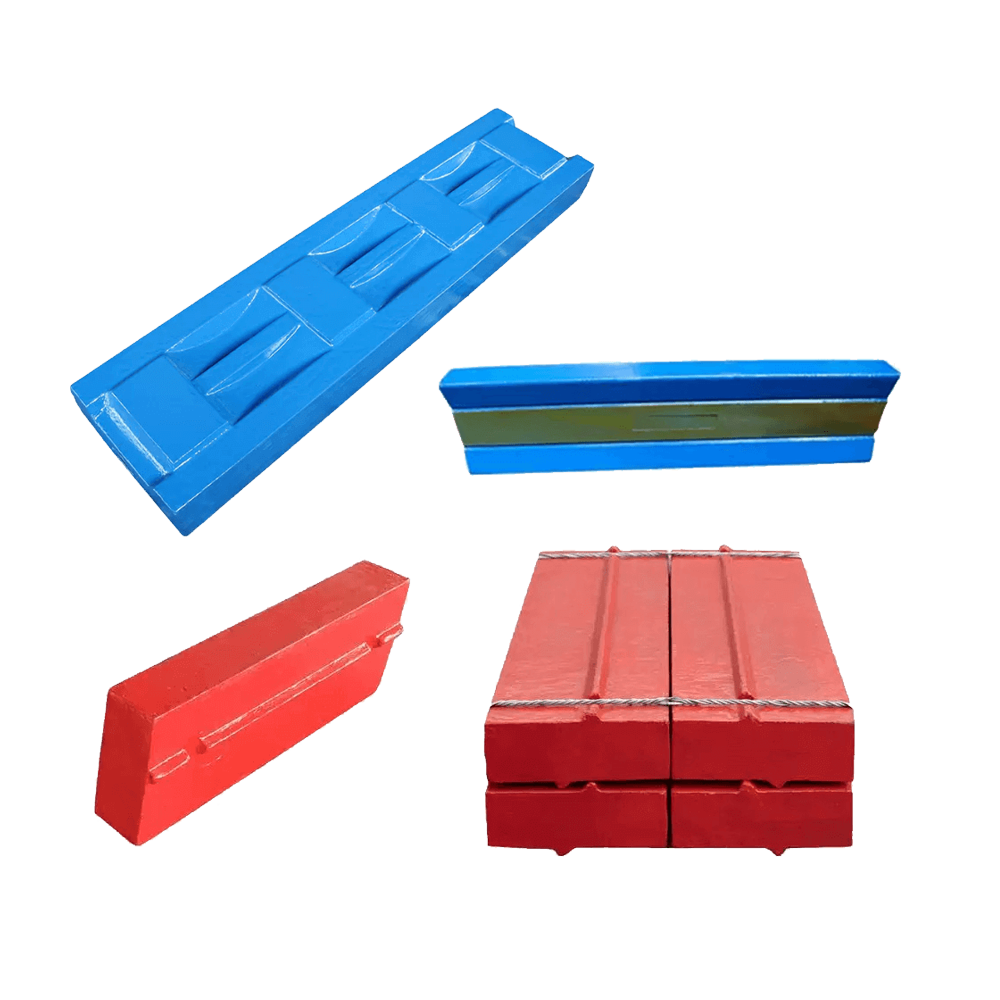

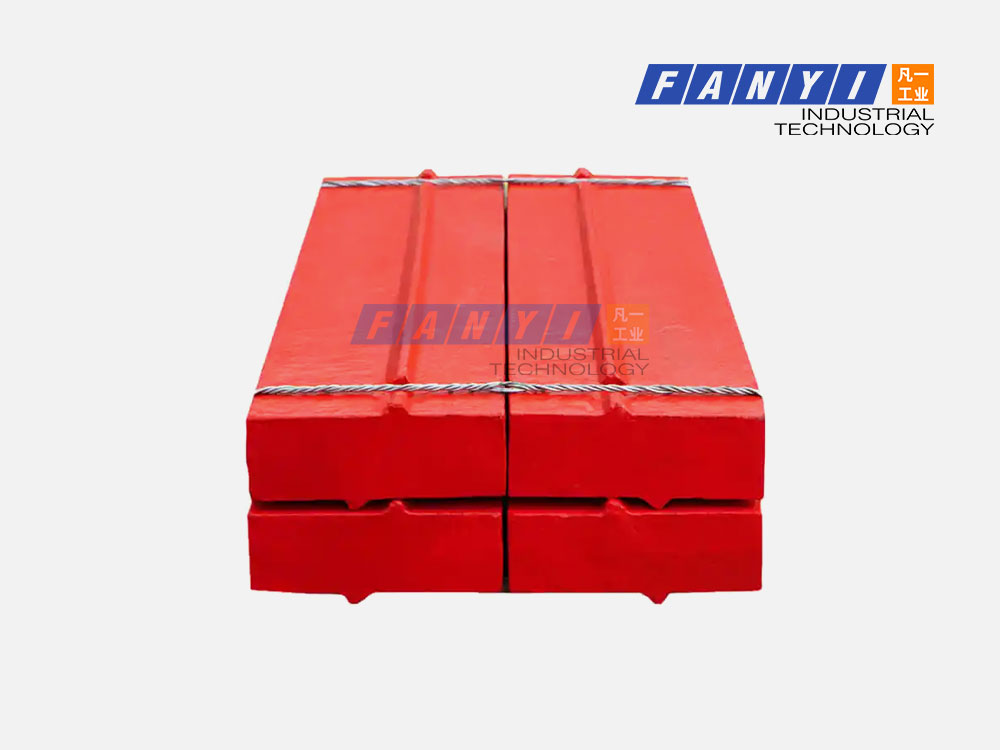

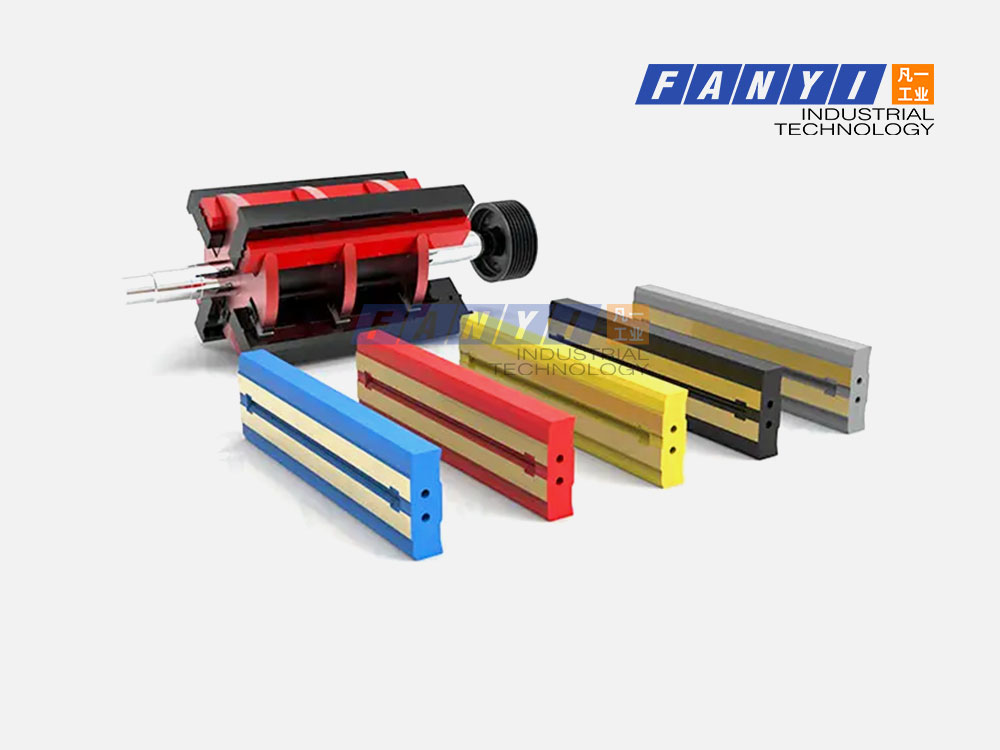

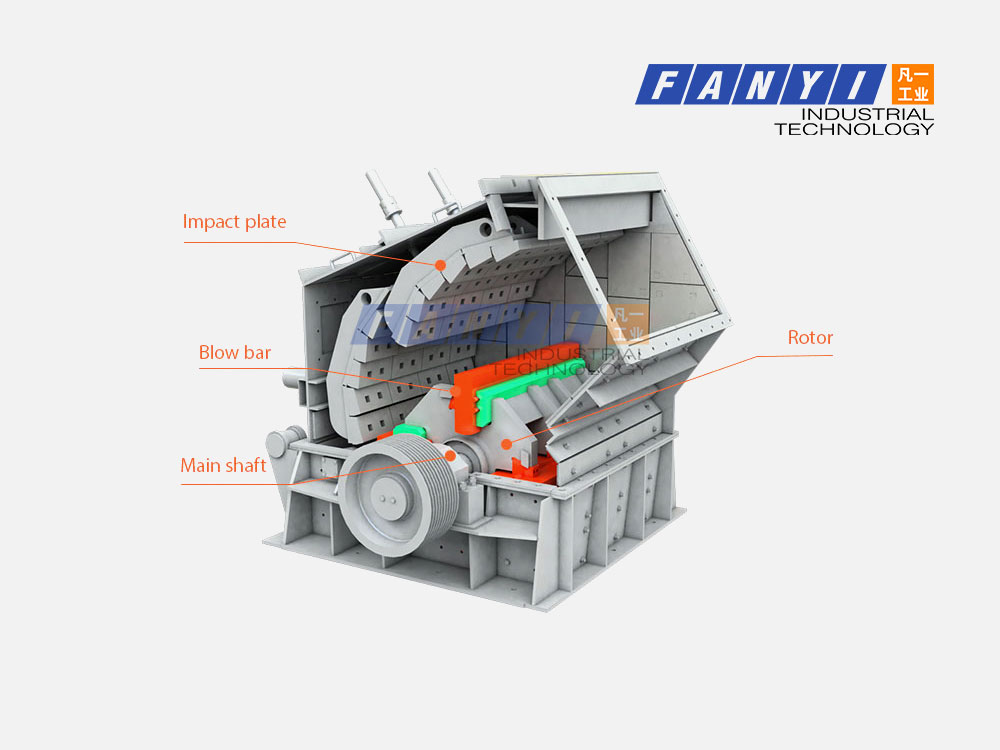

Blow Bars(Hammers)

The blow bar is one of the primary wearing parts of an impact crusher. And it is made of high chromium alloy.

We produce blow bars using the latest manufacturing techniques and unique structural designs. Our blow bar has a cubic shape, no tension and cracks, and a pretty good grain shape, which is a reliable high wear-resistant casting.

When the blow bar is worn to a certain extent, it should be adjusted or replaced in time to avoid damage to fasteners and other components.

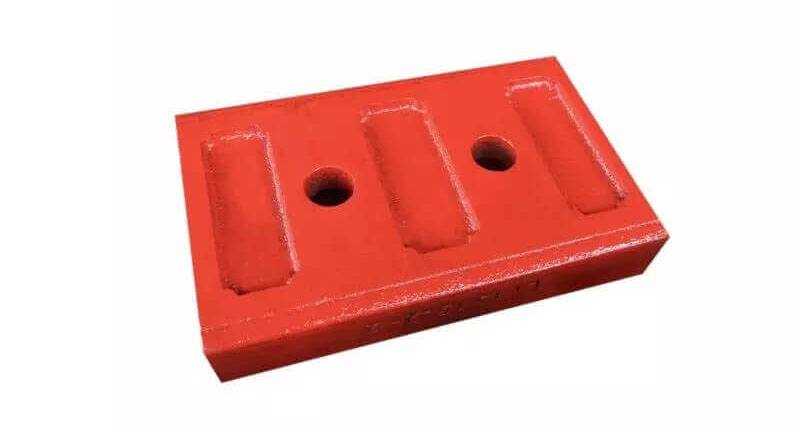

Impact Plates(Wear Liner)

The impact plate (wear liner) is the second vulnerable part in the impact crusher to the blow bar, which can protect the machine and reduce wear.

The impact plate’s shape, structure, and casting material greatly influence the impact-breaking efficiency and service life.

Suppose the impact plate with high wear resistance and impact resistance is adopted. In that case, it can not only prolong the service life of the impact crusher but also improve the production capacity of the impact crusher.

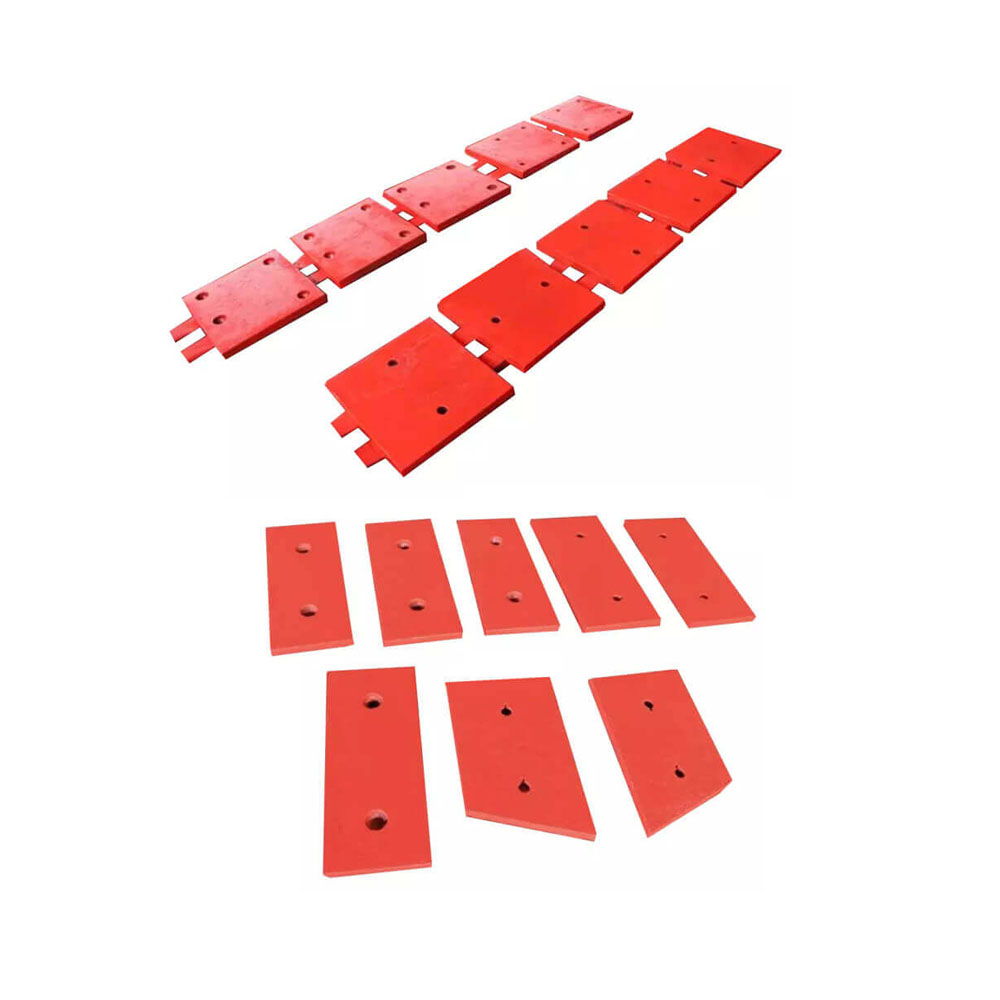

Side Liners

The side liners are also called frame liners, these are used on the inside of the impact or body to protect it from wear.

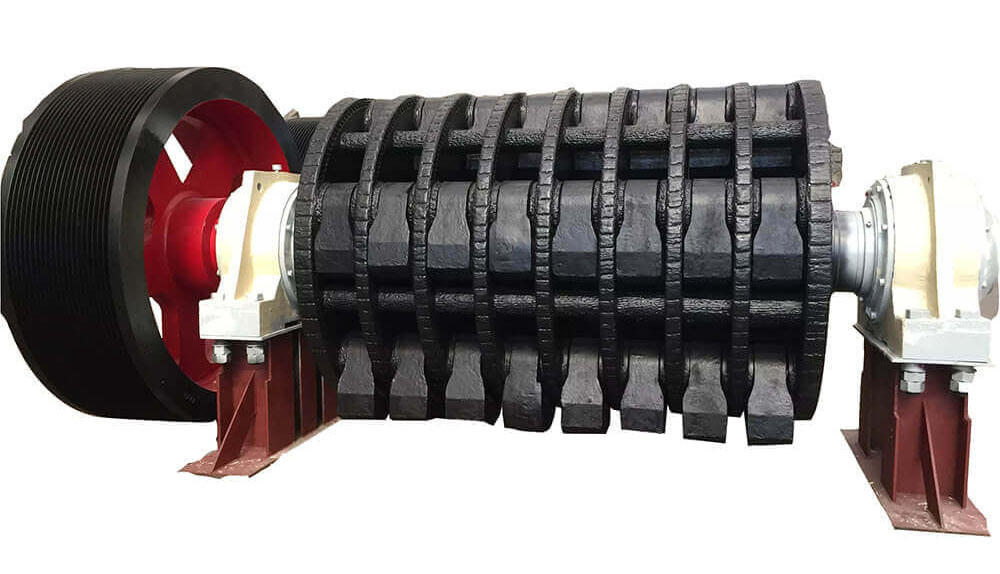

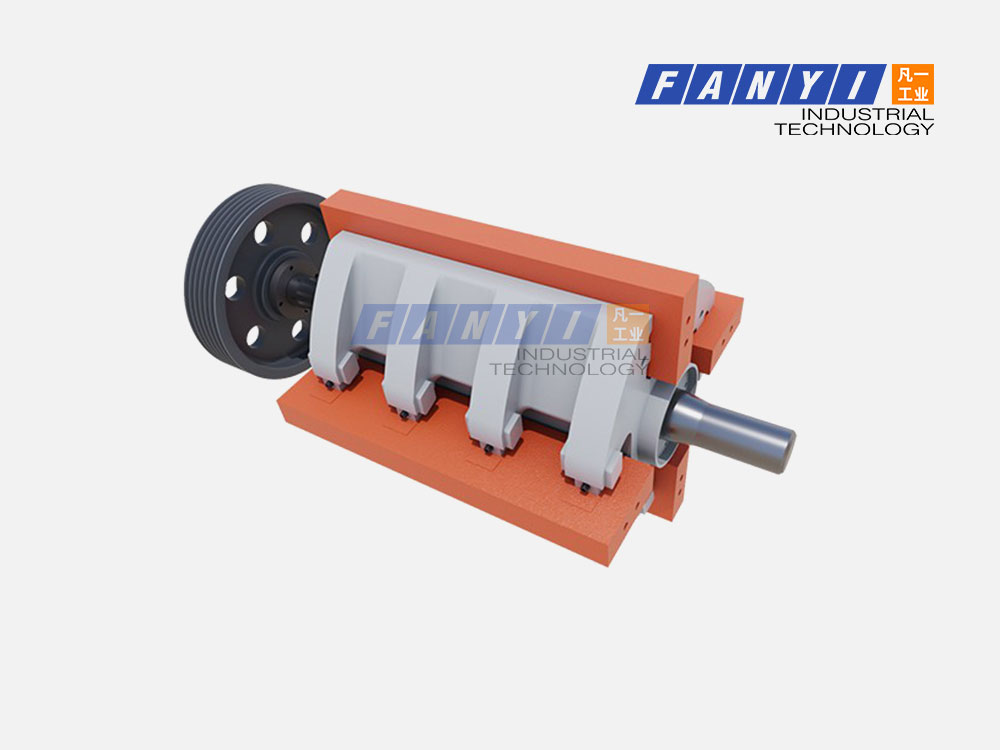

Rotor

This is the main part of the HSI crusher. It holds the blow bars and rotates at high speed, driven by a pulley connected directly to the engine.
